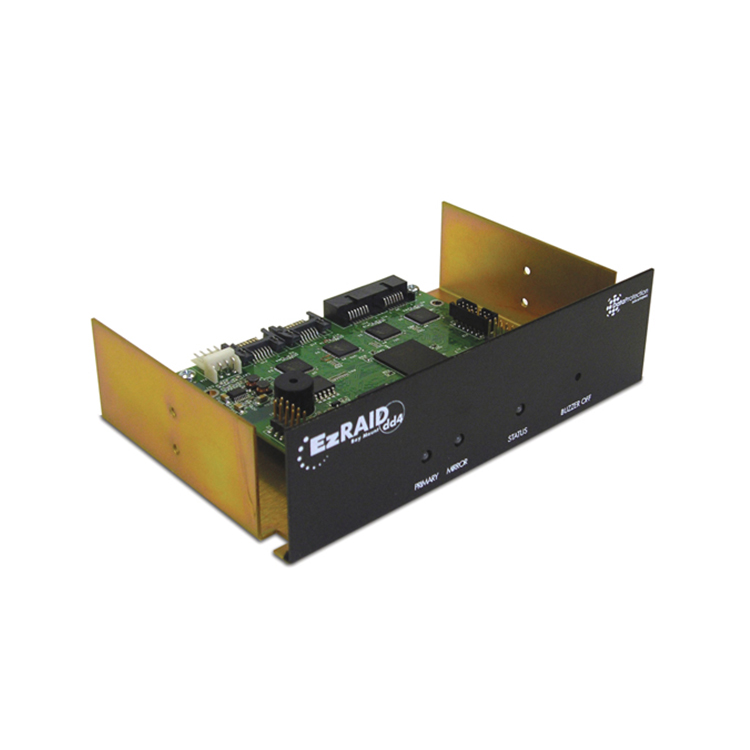

DD4 EzRaid 5.25” Bay Mount

$299.00 $259.00

Easy to use DupliDisk4 (DD4) RAID mirroring technology, the Bay Mount fits perfectly into a standard 5.25″ external drive bay and allows you to quickly and easily set up a RAID disk mirroring system on your computer using Serial ATA (SATA) drives. It supports either SATA or PATA (IDE) Host connection…

Out of stock

Category:

Description

Easy to use DupliDisk4 (DD4) RAID mirroring technology, the Bay Mount fits perfectly into a standard 5.25″ external drive bay and allows you to quickly and easily set up a RAID disk mirroring system on your computer using Serial ATA (SATA) drives. It supports either SATA or PATA (IDE) Host connection.

With the EzRAID DD4 5.25″ Bay Mount SATA RAID 1 disk mirroring controller, the state of your mirrored drives is immediately visible at all times. Front panel LEDs and an audible alarm will alert you instantly to any disruption in drive operation or break in the mirror. Up-front access to the alarm button makes it easy to quickly disarm or reset the siren once a problem has been recognized.

To install the 5.25″ Bay Mount RAID 1 controller simply slip the RAID controller into an available 5.25″ drive bay. Use the provided cables to connect your drives to the RAID controller and the RAID controller to your motherboard. Run the provided software to establish the mirror and you’re done. No need for special drivers, no interrupt or software conflicts.

Features

  • Supports either SATA or PATA (IDE) host
  • Operating system and platform independence
  • Mounts in 5.25” drive bay
  • No BUS slot required
  • No need for IRQs, TSRs or device drivers
  • Supports one pair of SATA hard disk drives
  • Supports drives up to 144 petabytes (48 bit LBA)
  • Available in beige or black

Benefits

  • Quick and easy installation
  • Support for mixed (dissimilar) drives
  • Data saves sent to both drives simultaneously
  • Mirrored drives are both bootable
  • If one drive fails, the remaining drive assumes control
  • Readily accessible front panel alerts: audible alarm and visual LEDs
  • Easy-to-use Windows XP/2000/2003/Vista/Win7 Management Utility
  • True background under Windows
  • Available mirroring utility for non-Windows systems
  • 100% data redundancy

Additional information

Weight 1 lbs

Reviews

There are no reviews yet.

Be the first to review “DD4 EzRaid 5.25” Bay Mount”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Drive Interface SATA I
Data Path SATA I / PATA (IDE)
Defined by host controller
Host Interface Standard 20″ SATA cable
Electrical Input Voltage 5V DC (+/- 5%)
Current 450ma operating, 600ma peak
Physical Dimensions Length: 5.83 Inch / 14.8 cm
Width: 5.75 Inch / 14.6 cm
Height: 1.65 Inch / 4.2 cm
Operating Temperature: 0 – 50°C
Humidity: 8 to 87% non-condensing
MTBF MIL-HDBK-217 = 580,383 hours
Bellcore rating = 2,695,418 hours
EMC/EMI Compliance FCC class B certification
CE certification
